Amamix
Amamix

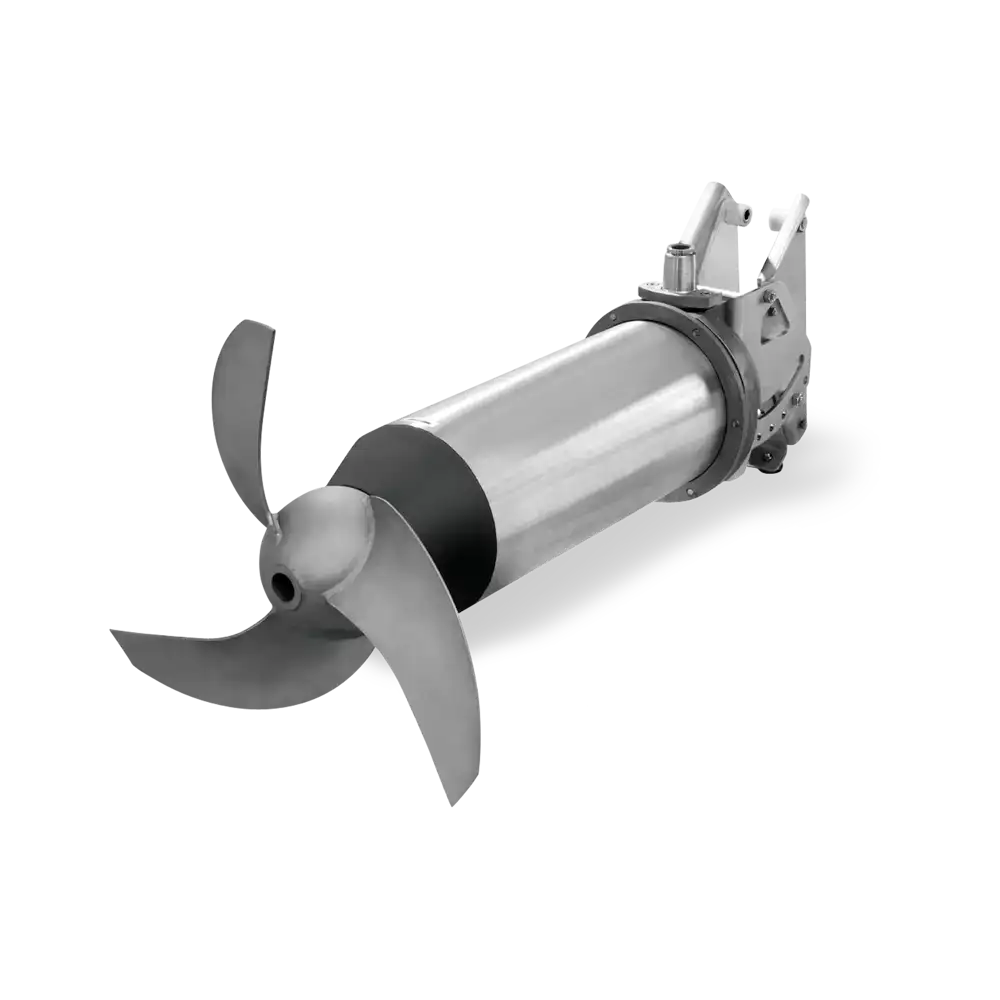

Horizontal submersible mixer with self-cleaning ECB propeller, close-coupled design, direct drive. ATEX-compliant version available.
Horizontal submersible mixer with self-cleaning ECB propeller, close-coupled design, direct drive. ATEX-compliant version available.
Key Technical Information
Max. flow rate
60 m3/h
Max. head
38 m
Maximum allowable fluid temperature
33 °C
Applications
- Irrigation for small-scale agricultural businesses
- Water supply, e.g. for gardens, greenhouses
- Water supply for domestic applications, e.g. in buildings and apartments
- Mixing
- Homogenisation
- Sludge thickening
- Sludge holding tanks
- Primary sedimentation tanks
- Secondary sedimentation tanks
- Heat transfer optimisation
- Maintaining clean pump sumps
- Preventing the formation of deposits at tank walls and floors
- Breaking up and transporting floating sludge
- The products are supplied in several wide voltage ranges in order to meet customer requirements.
- Available with an extended shaft for customised applications.
- Available with star rating and ISI certification.
- Motor made of cast iron and aluminium
- Sturdy design for reliable operation over an extended period of time, also under tough operating conditions
- Efficient motor design for durability: The pump set is designed for reliable performance with minimal risk of failures or malfunctions.
- Compact design, easy to install: The pump set is compact and self-contained, making it easy to install and use in a wide variety of applications.
- High operating reliability due to dry, pressure-tight and encapsulated squirrel-cage motor, thermal class F
- Bi-directional mechanical seal for increased reliability
- Temperature sensors prevent overheating of the motor
- Marked reduction of energy costs due to optimised propeller design
- Environmentally friendly oil fill
- Ease of service with bolts made of stainless steel which are easy to undo even after years of operation
- Absolutely watertight cable entry
1.
Function
Pump
2.
Drive concept
With electric actuator
3.
Max. flow rate
60 m3/h
4.
Min. flow rate
4 m3/h
5.
Max. head
38 m
6.
Min. head
6 m
7.
Mains frequency
50 Hz
8.
Drive concept
With electric actuator
9.
Mains voltage
220 V,
240 V,
380 V,
415 V
10.
Suction behaviour
Non-self-priming
11.
Maximum allowable fluid temperature
33 °C
| 1. | Function | Mix |
| 2. | Drive concept | With electric actuator |
| 3. | Mains frequency | 50 Hz, 60 Hz |
| 4. | Mains voltage | 230 V, 400 V, 460 V, 500 V, 690 V |
| 5. | Maximum allowable fluid temperature | 40 °C |
