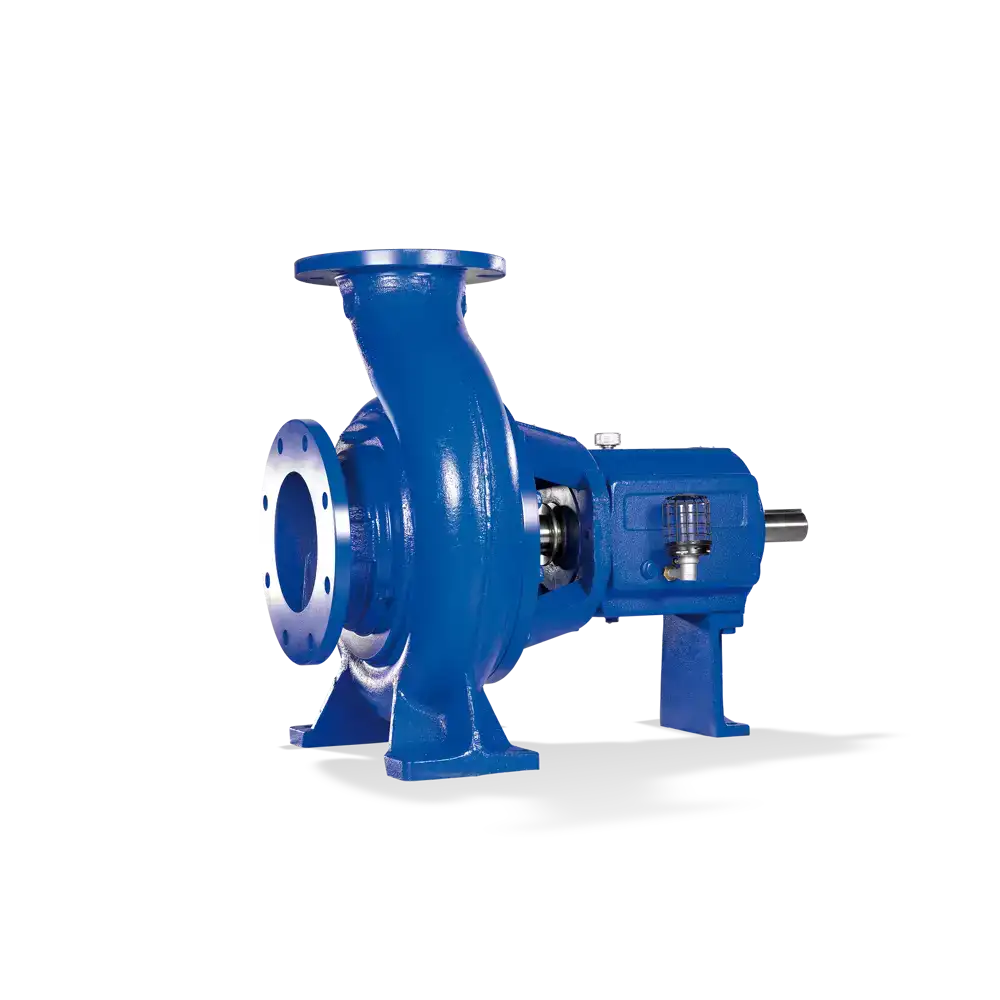

KNCPP
KNCPP
End suction pump for paper and pulp applications with a dry solids content of up to 8 %. KNCPP are horizontal, single-stage, single-entry process pumps, usually with open impeller, with radially split volute casing, in back pull-out design.
End suction pump for paper and pulp applications with a dry solids content of up to 8 %. KNCPP are horizontal, single-stage, single-entry process pumps, usually with open impeller, with radially split volute casing, in back pull-out design.
Key Technical Information
Max. flow rate
60 m3/h
Max. head
38 m
Maximum allowable fluid temperature
33 °C
Applications
- Irrigation for small-scale agricultural businesses
- Water supply, e.g. for gardens, greenhouses
- Water supply for domestic applications, e.g. in buildings and apartments
- Process industry
- The products are supplied in several wide voltage ranges in order to meet customer requirements.
- Available with an extended shaft for customised applications.
- Available with star rating and ISI certification.
- Motor made of cast iron and aluminium
- Sturdy design for reliable operation over an extended period of time, also under tough operating conditions
- Efficient motor design for durability: The pump set is designed for reliable performance with minimal risk of failures or malfunctions.
- Compact design, easy to install: The pump set is compact and self-contained, making it easy to install and use in a wide variety of applications.
- Suitable for fluids with a high (paper) stock concentration
- Service-friendly and easy to maintain
- Pump easy to install
1.
Function
Pump
2.
Drive concept
With electric actuator
3.
Max. flow rate
60 m3/h
4.
Min. flow rate
4 m3/h
5.
Max. head
38 m
6.
Min. head
6 m
7.
Mains frequency
50 Hz
8.
Drive concept
With electric actuator
9.
Mains voltage
220 V,
240 V,
380 V,
415 V
10.
Suction behaviour
Non-self-priming
11.
Maximum allowable fluid temperature
33 °C
| 1. | Function | Pump |
| 2. | Connection type | Flange |
| 3. | Drive concept | Combustion engine |
| 4. | Max. flow rate | 2520 m3/h |
| 5. | Min. flow rate | 5 m3/h |
| 6. | Max. head | 105 m |
| 7. | Min. head | 1 m |
| 8. | Mains frequency | 50 Hz |
| 9. | Mains voltage | 415 V |
| 10. | Casing material | A351 GR CF8M, A351 GR CF3M, IS 210 GR FG260, A743 GR CF8, A743 GR CF8M, SS2324, A216 GR WCB-A872 GR CD4MCUN-PTFE |
| 11. | Nominal pressure | PN 16 |
| 12. | Max. allowed working pressure | 16 bar |
| 13. | Suction behaviour | Non-self-priming |
| 14. | Maximum allowable fluid temperature | 180 °C |
| 15. | Minimum allowable fluid temperature | -100 °C |
